To Implement Page Replacement Algorithms

Introduction

Page Replacement is a memory management technique used in computer systems to decide which memory pages to swap out when a new page needs to be loaded into memory, but there isn't enough space available. This is essential in systems using virtual memory, where the physical memory (RAM) is smaller than the virtual address space. Page replacement algorithms aim to minimize the number of page faults (situations where the required page is not in memory and must be loaded from disk) to improve system performance.

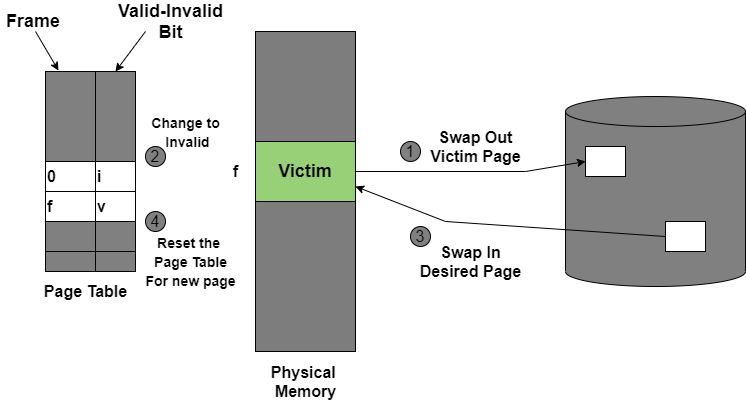

Fig. 1 Page Replacement

Reference String: The string of memory references is called reference string. Reference strings are generated artificially or by tracing a given system and recording the address of each memory reference. We can consider it as a sequence of numbers or sequence of strings.


  1. First In, First Out (FIFO) Algorithm: It is a simple page replacement algorithm that replaces the oldest page in memory with the new page. The idea is to evict the page that has been in memory the longest, regardless of how frequently or recently it was accessed.

    2. How it's work:

    • Maintain a queue of pages in memory.
    • When a new page is loaded and memory is full, the page at the front of the queue (the oldest page) is replaced.
    • The new page is added to the back of the queue.


    Example:

    No. of Frames: 3

    References String: 6,7,8,9,6,7,1,6,7,8,9,1

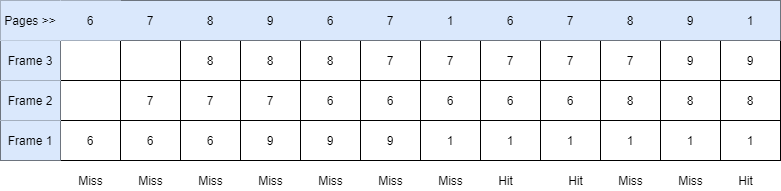

    fifo
    Fig. 2 Solution of FIFO

    Total no. of page fault: 9

    Total no. of page hit: 3

    Advantages :

    • Simple and easy to implement.
    • Low overhead in terms of computation.

    Disadvantages :

    • Can lead to suboptimal performance, especially if the oldest page is frequently used.
    • May evict frequently used pages, leading to more page faults.

  2. Least Recently Used (LRU) Algorithm: The page that has not been used for the longest period of time is replaced. Tracks page usage over time, and replaces the least recently accessed page.

    3. How it's work:

    • Maintain a list or stack of pages in memory, sorted by the time of their last access.
    • When a page is accessed, it is moved to the top of the list.
    • When a new page needs to be loaded and memory is full, the page at the bottom of the list (the least recently used page) is replaced.


    Example:

    No. of Frames: 3

    References String: 6,7,8,9,6,7,1,6,7,8,9,1,7,9,6

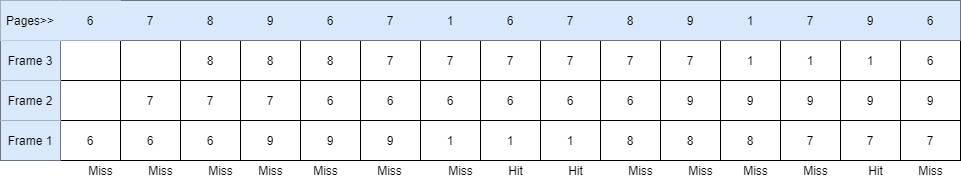

    LRU
    Fig. 3 Solution of LRU

    Total no. of page fault: 12

    Total no. of page hit: 3

    Advantages :

    • Generally provides better performance than FIFO because it is based on actual usage patterns.
    • Generally results in fewer page faults compared to FIFO.

    Disadvantages :

    • More complex to implement due to the need to track and update usage information.
    • Higher overhead due to the need to update the list on every memory access.

  3. Optimal Page Replacement Algorithm: It is an algorithm that replaces the page that will not be used for the longest period in the future. It is theoretical and serves as a benchmark for comparing the performance of other algorithms since it is impossible to implement perfectly in practice (as it requires future knowledge of memory accesses).

    4. How it's work:

    • For each page in memory, determine when it will be accessed next.
    • If not present, find if a page that is never referenced in future. If such a page exists, replace this page with new page. If no such page exists, find a page that is referenced farthest in future. Replace this page with new page.


    Example:

    No. of Frames: 3

    References String: 6,7,8,9,6,7,1,6,7,8,9,1,7,9,6

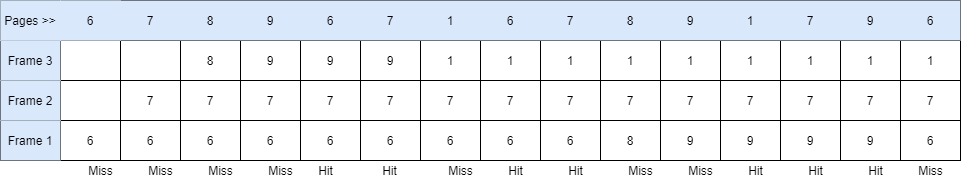

    optimal
    Fig. 4 Solution of Optimal

    Total no. of page fault: 8

    Total no. of page hit: 7

    Advantages :

    • Provides the best possible performance and the lowest page-fault rate.
    • Serves as an ideal standard for evaluating other algorithms.

    Disadvantages :

    • Impractical in real scenarios because future knowledge of page references is required.
    • Can only be approximated in real systems.

  4. LFU (Least Frequently Used): It is a page replacement algorithm that replaces the page with the smallest count of accesses. The idea is that pages that are accessed less frequently are less likely to be needed in the future.

    5. How it's work:

    • Maintain a counter for each page in memory that tracks the number of times the page has been accessed.
    • When a new page needs to be loaded and memory is full, the page with the smallest counter value is replaced.
    • If two or more pages have the same counter value, use a secondary method (e.g., FIFO) to break the tie.


    Example:

    No. of Frames: 3

    References String: 7,0,2,4,3,1,4,7,2,0,4,3,0,3,2,7

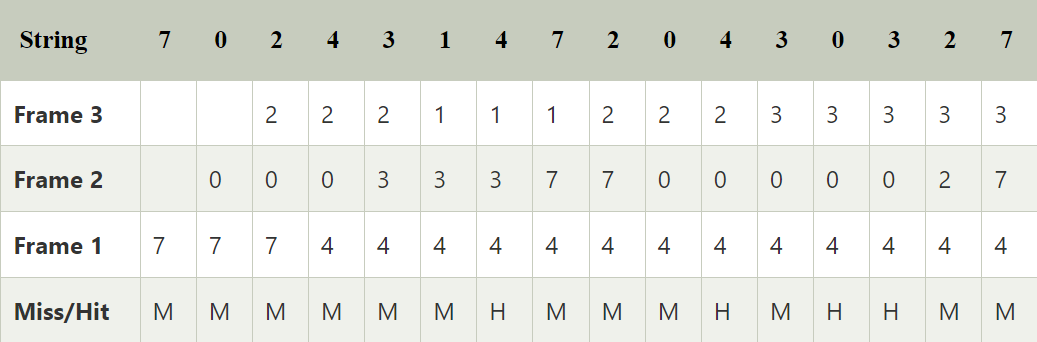

    LFU
    Fig. 5 Solution of LFU

    Total no. of page fault: 12

    Total no. of page hit: 4

    Advantages :

    • Takes into account the frequency of page usage, which can be more efficient than FIFO and LRU in certain scenarios.
    • Useful in environments where some pages are accessed much more frequently than others.

    Disadvantages :

    • More complex to implement because of the need to maintain and update access counts.
    • Can lead to inefficiencies if certain pages are frequently accessed over a short period but not again for a long time (e.g., pages used heavily during program initialization).

  5. MRU (Most Recently Used): It is a page replacement algorithm that replaces the page that was most recently accessed. The idea is that if a page was recently used, it is less likely to be used again in the near future.

    6. How it's work:

    • Maintain a stack or list of pages in memory, sorted by the time of their last access.
    • When a new page needs to be loaded and memory is full, the page at the top of the stack (the most recently used page) is replaced.


    Example:

    No. of Frames: 4

    References String: 7,0,1,2,0,3,0,4,2,0,3,2,3

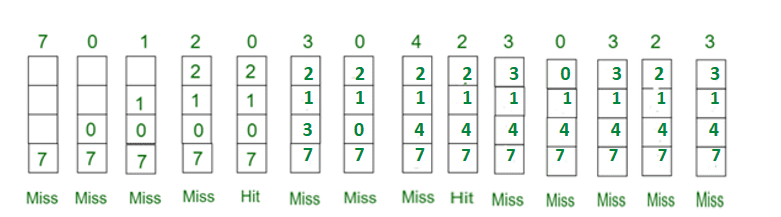

    MRU
    Fig. 6 Solution of MRU

    Total no. of page fault: 12

    Total no. of page hit: 2

    Advantages :

    • Simple to implement and maintain.
    • Can be effective in certain scenarios, such as when the most recently used page is no longer needed (e.g., temporary data processing).

    Disadvantages :

    • Often less efficient than other algorithms like LRU and LFU because it doesn't consider the long-term usage patterns.
    • May result in higher page fault rates if the most recently used page is accessed again shortly after being replaced.

Belady'sAnomaly: In the case of LRU and optimal page replacement algorithms, it is seen that the number of page faults will be reduced if we increase the number of frames. However, Belady found that, In FIFO page replacement algorithm, the number of page faults will get increased with the increment in number of frames. This is the strange behavior shown by FIFO algorithm in some of the cases. This is an Anomaly called as Belady'sAnomaly.

Applications

  • Virtual Memory Management: Page replacement algorithms are fundamental in operating systems for managing virtual memory. When the physical memory (RAM) is full, these algorithms decide which pages to swap out to disk storage to make space for new pages.

  • Process Scheduling: Algorithms like LRU and FIFO are used to manage the memory of processes to ensure efficient execution and minimize page faults, thereby improving overall system performance.

  • Buffer Pool Management: Databases use page replacement algorithms to manage the buffer pool, which stores frequently accessed data pages. Efficient page replacement minimizes disk I/O operations, significantly speeding up database queries and transactions.

  • Content Delivery Networks (CDNs):CDNs use these algorithms to manage cached content across various edge servers, ensuring that the most frequently accessed content is quickly available to users.
