Procedure
Step 1: Click on the Control Circuit button in Control Circuit Section.
Step 2: Get the required components in Control Circuit Section by clicking on components displayed in Components Section.

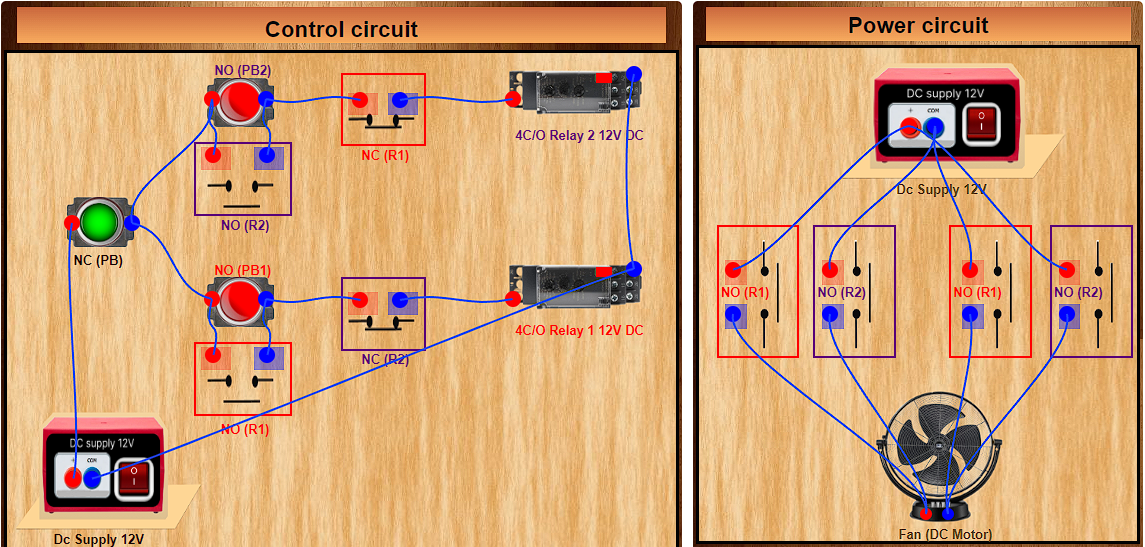

Step 3: Establish the connections according to the control circuit diagram provided in Fig. (a).
Step 4: Verify the control circuit by clicking on the Check Connections 1 button.
Step 5: If Wrong Connections then click on Delete Connections 1 button to delete connections and make the right connections .
Step 6: Once the Control Circuit is verified, switch to the Power Circuit Section.
Step 7: Get the required components in Power Circuit Section by clicking on components displayed in Components Section.
Step 8: Make the connections according to the Power Circuit diagram provided in Fig. (b).
Step 9: Click on the Check Connections 2 button to validate the Power Circuit Connection.
Step 10: If Wrong Connections then click on Delete Connections 2 button to delete connections and make the right connections .
Step 11: Once the Power Circuit is verified, Switch On the Power Supplies.
Step 12: Click on the NO Push Button 1 to rotate the motor anticlockwise .
Step 13: Click on the NC Push Button to stop the rotation the motor .
Step 14: Click on the NO Push Button 2 to rotate the motor clockwise .
Step 15: Click on the Print button to get a print of the webpage.
Step 16: Click on the Reset button to refresh the webpage .
:
